Model Type:High Capacity IP Module
Manufacturer:Allen-Bradley
Model Number:1756EN2T
Communication Protocol:Ethernet/IP Bridge
Communication Speed:10/100 Mbps
Enclosure Type:Open Type
Temperature Rating:0 – 60°C
Power Dissipation:5.1 W
Isolation:Continuous 30 V
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface:Ethernet
USB Port:Not Provided
Max TCP/IP Connections:64
Max Logix Connections:128 (I/O & Information)
Max Multicast Tags:32
Unicast Support:RSLogix 5000 Version 16.03.00 or Later
Socket Services:Included
SNMP Support:With Password
Duplicate IP Detection:Starting in Revision 3.3
Packet Rate Capacity:500pps I/O, 900pps HMI/MSG

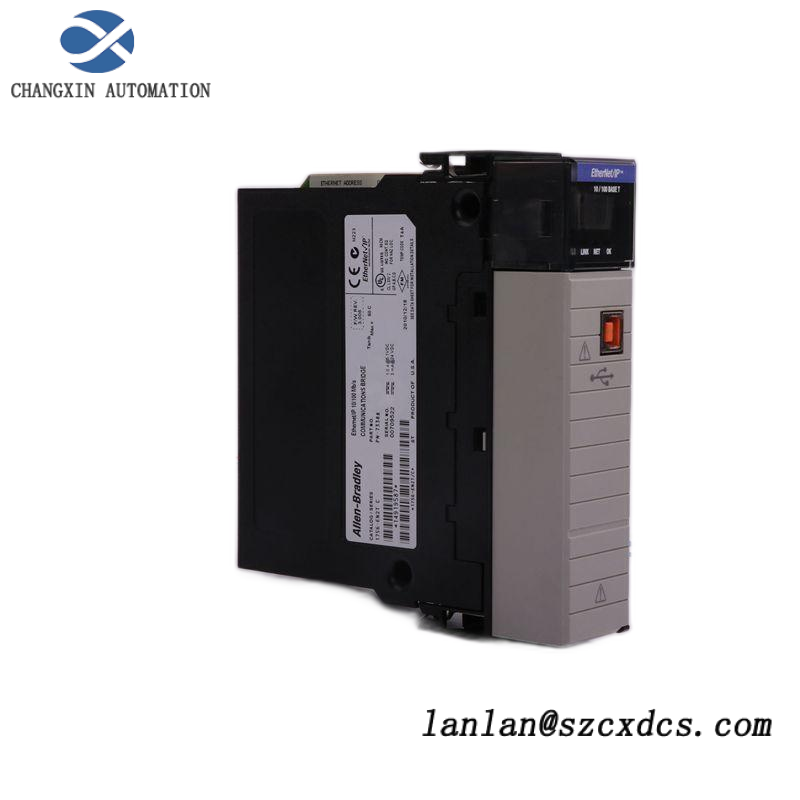

Engineered for high capacity and reliability, the Allen-Bradley 1756-EN2T ControlLogix EtherNet/IP Bridge Module is designed to facilitate robust communication within industrial automation environments. This module seamlessly integrates ControlLogix systems with Ethernet/IP networks, ensuring efficient data exchange and enhanced operational performance.
Featuring an open type enclosure, the module is built to withstand demanding industrial conditions, ensuring reliable operation in various temperature ranges and humidity levels. Its power dissipation is optimized to maintain efficiency without overheating, making it suitable for continuous use in harsh environments.
With support for up to 64 TCP/IP connections and 128 Logix connections, the 1756-EN2T provides a scalable solution for managing multiple communication channels. This capability ensures that users can easily expand their network infrastructure as their automation needs evolve.
The inclusion of an Ethernet interface and a USB port enables flexible connectivity options, facilitating easy configuration and diagnostics. The module’s compatibility with shielded or unshielded twisted pair cables ensures compatibility with a wide range of cabling standards, further enhancing its versatility.
Compliance with international standards ensures the Allen-Bradley 1756-EN2T is not only a powerful tool for industrial automation but also a reliable choice for integrating with existing systems. It is designed to meet the stringent requirements of modern manufacturing environments, offering peace of mind with its robust design and comprehensive feature set.
